VayoPro-DFM Expert
VayoPro-DFM Expert is an intelligent analysis software for new product introduction in electronics manufacturing. The software utilizes PCB design and BOM data, interacts with parts library, comply with industry standard of design & manufacturing, simulate/analyze defects prior to manufacturing, ensures manufacturing & design standard are matching and also generates DFM reports for collaboration between manufacturing and design departments. The software reduces design & manufacturing cycle time, leverages manufacturing quality and reduces manufacturing cost.
Powerful Data Processing Capability, Smooth Communication With Customer Or R&D
Whether you are building products for your own brand or others, whether you are engineer or manager, with VayoPro-DFM Expert you will no longer face difficulties in processing the data from designer. VayoPro-DFM Expert is able to handle Gerber data source and the following PCB CAD type.
| File extension | EDA/Layout System | File extension | EDA/Layout System | File extension | EDA/Layout System | File extension | EDA/Layout System |
| *.brd | Cadence allegro | *.pcb | Protel | *.tgz | ODB++ | neutral_file | Mentor |
| *.val | Cadence allegro | *.pcbdoc | Altium | *.cad | GenCAD | *.uni | Unidat |
| *.cad | Cadence allegro | *.ftf *.pcf | Zuken CR5000 | *.asc | FATF | *.paf | Viscadif |
| *.gbr | Gerber file | *.BSF *.CCF | Zuken CR3000 | *.gcm | GenCAM | *.asc | PowerPCB |
| *.pho *.art | Gerber file | *.min | OrCAD | *.IPC | IPC 356 | ...... | ...... |
BOM Validation & Import
The software supports BOM in both Text & Excel formats. The software validates BOM/AVL errors (duplicated parts, quantity not match, duplicated PN & etc) and perform validation with CAD (wrong part, missing parts & etc).
- Support dynamic BOM content
- Excel, text
- BOM Vs CAD Validation
- Mismatch parts quantity
- Duplicate part number
- In BOM not in CAD
- Duplicate part number
- In BOM not in CAD
- Minimize human interfere errors
- BOM Comparison
- Export Internal BOM
- Save > 70% manipulation cycle
Support Gerber Source
The software supports RS-274-X & RS-274-D Gerber data source and utilizes XY coordinates file to achieve fast DFM analysis.
BOM Comparison & BOM Export
The software enable user not only compare two different BOM revision, but also generate BOM list for manufacturing purpose.
Add New Component
User can add new component like shielding case if the PCB CAD data doesn’t contain such information. This feature enable user to accomplish a more comprehensive DFM analysis.

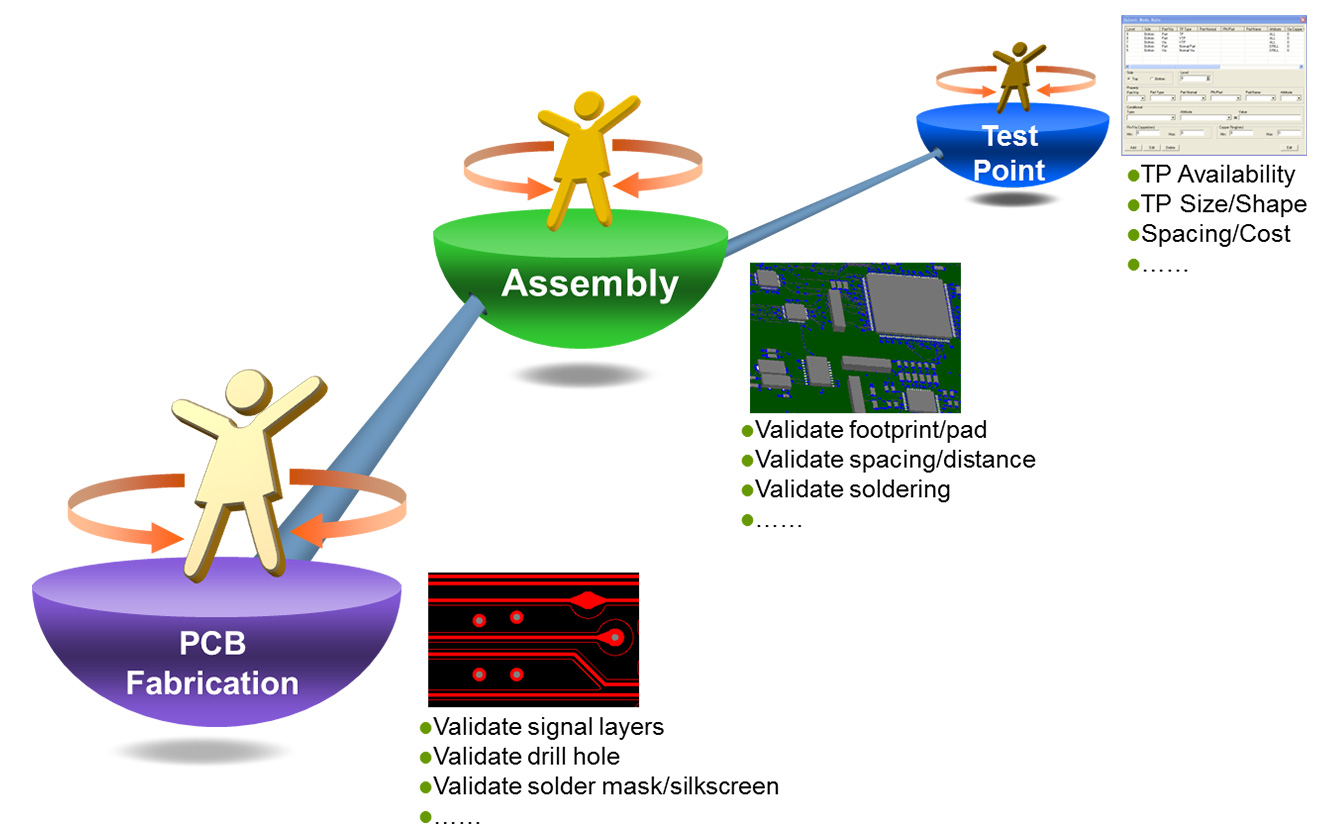

Comprehensive DFM Analysis, Detect Manufacturing Defects
Comprehensive Component Elibrary
Comprehensive component library using SQL database and comply with IPC standard. Component package data includes detailed shape, size & pin element (shape, size, quantity, direction & allocation position) information with 2D & 3D view capability.
DFM Rules
DFM rules comply with IPC and industry standard such as PC-SM-7351, IPC-7525, IPC-TM650, IPC-A-610 & etc. Users can configure the rules set in order to fir the requirements of in house manufacturing standard. Vayo also offers DFM rule customization service based on users’ specific standard/specification.
Interactive Result Query
The result query tool provides different analysis method according to different setting requirement by users. The feature also provides graphic interactive capability in reference to each detected defect.
Comprehensive DFM Reports
The DFM reports are available in different formats (Text, PDF, Excel or Html). The standard DFM report from the software is comprehensive. Vayo also offers DFM report customization service based on the required format from users.
- Demonstrate high level DFM/ DFA capability
- Ease the communication with clients or design department
Step By Step Operation Guide
Step by step operation guide ease the learning & usage of software.
3D Component View
Board assembly 3D graphic view offers a more dynamic visual effect on the PCBA finish goods.
DFM Expert compares dimension between alternative part with primary part.
Alternative Parts
The software is able to generate the alternative part differences, this will enable the user to identify the differences between the alternative parts in terms of outline/shape in order to avoid manufacturing problem.
