Vayopro-Document Expert
VayoPro-Document Expert is an essential tool for document generation dedicated to electronics assembly companies. The software imports CAD & BOM data, integrates process requirements, performs line balancing & parts assign for manual insert stations, generates work instruction & process document with board graphic. The software enables user to reduce document creation time from days to hours.
Powerful Data Processing Capability, Smooth Communication With Customer Or R&D

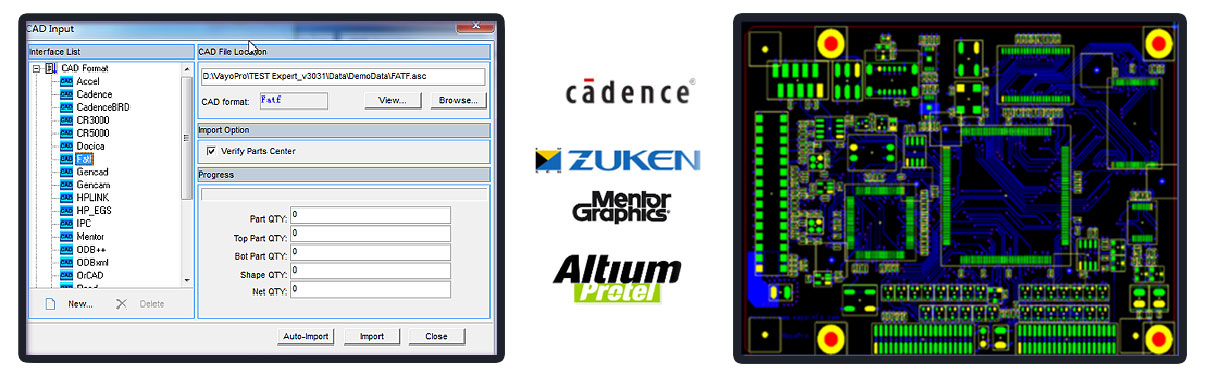

Whether you are building products for your own brand or others, whether you are engineer or manager, with VayoPro-Document Expert you will no longer face difficulties in processing the data from designer. VayoPro-Document Expert is able to the following PCB CAD type.
File extension | EDA/Layout System | File extension | EDA/Layout System | File extension | EDA/Layout System | File extension | EDA/Layout System |
*.brd | Cadence allegro | *.pcb | Protel | *.tgz | ODB++ | neutral_file | Mentor |
*.val | Cadence allegro | *.pcbdoc | Altium | *.cad | GenCAD | *.uni | Unidat |
*.cad | Cadence allegro | *.ftf *.pcf | Zuken CR5000 | *.asc | FATF | *.paf | Viscadif |
*.gbr | Gerber file | *.BSF *.CCF | Zuken CR3000 | *.gcm | GenCAM | *.asc | PowerPCB |
*.pho *.art | Gerber file | *.min | OrCAD | *.IPC | IPC 356 | ...... | ...... |
BOM Validation & Import
The software supports BOM in both Text & Excel formats. The software validates BOM errors (duplicated parts, quantity not match, duplicated PN & etc) and perform validation with CAD (wrong part, missing parts & etc).
- Support dynamic BOM content
- Excel, text
- BOM Vs CAD Validation
- Mismatch parts quantity
- Duplicate part number
- In BOM not in CAD
- Duplicate part number
- In BOM not in CAD
- Minimize human interfere errors
- BOM Comparison
- Export Internal BOM
- Save > 70% manipulation cycle

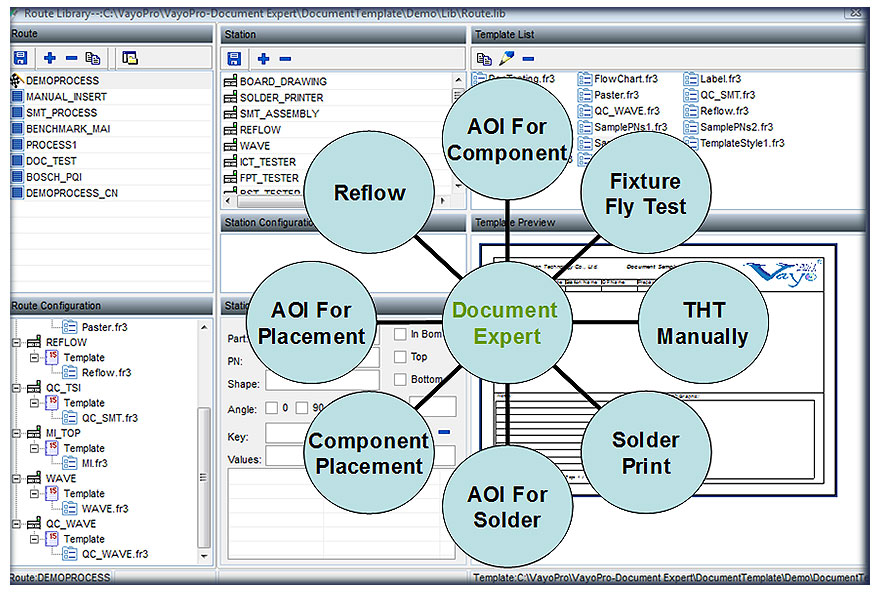

Comprehensive Visual Document: Match Actual Line Station & Process Steps
The software complies with actual production stations or actual process steps. The software also generates corresponding work instruction documents; these documents contains comprehensive visual information, which increase readability and guarantee better manufacturing quality.
- Support multiple stations
- Support virtual line/ factory
- Support different process
- Support multiple operators per station
- Support multiple pages per operator/ station
- Unified document platform
- Save labor cost
Comprehensive Visual Document: Graphical Work Instruction
With PCB layout from design, the software presents precise parts location & visible shape/size/fonts; User is allowed to configure the colour, font type, style for different line/stations, which offers higher quality of graphical work instructions.
- Color setting
- Character/ size setting
- Shape/ style setting
- Call out zoom
Comprehensive Visible Document: Configurable Parts Parameters

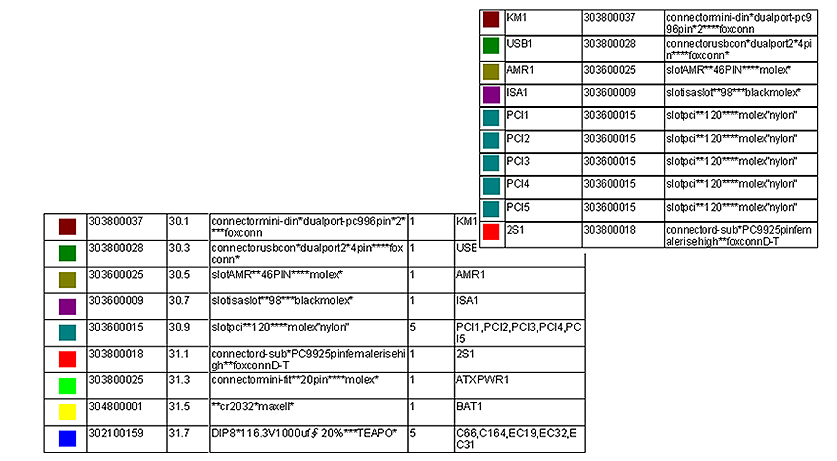

Based on BOM (Bill of material), parts parameters can be extracted according to the detailed information in BOM, or the requirements of layout for each line station.
Comprehensive Visible Document: Manual Insert Station Balancing
The software has the feature of line balancing and allows users to assign parts for manual insert stations. Part assignment can be performed according to throughput target, assembly path, height, operator quantity & ect.

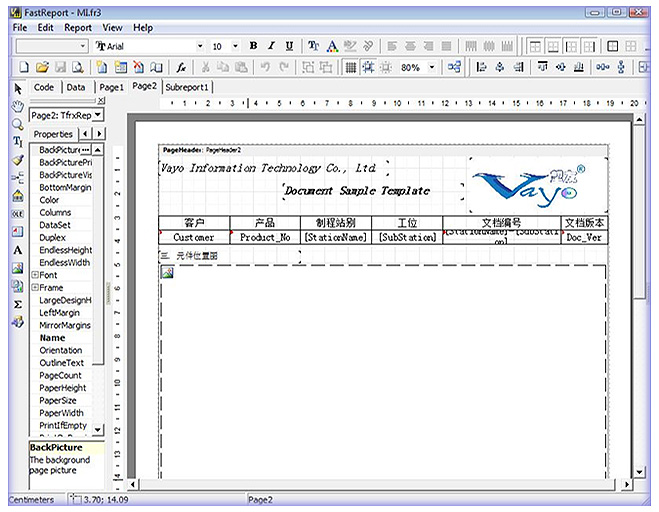

Rich Visible Document: Company Document Template
VayoPro-Document Expert supports user configurable template; end-user could define template for their own company, set common data in template such as logo, create date, station, page num., product, revision & etc. It shall automatic load such information when generating documents.
- Rich content (logo, paper size, layout design, ...)
- Support multiple templates
- Support multiple boards
- User-defined BOM Table (By Part Number, By Sequence)
Automatic Document Generation
The software automatically generates multiple page document for specified product covering each line station or every process step. Those documents contains comprehensive information like graphic layout, parts list & other common data. Vayo also offers document template customization service based on the required format from users.
Document Content
- General info (company name, logo, revision, ...)
- Colored parts location
- Parts list
- Reduce 70% document cycle

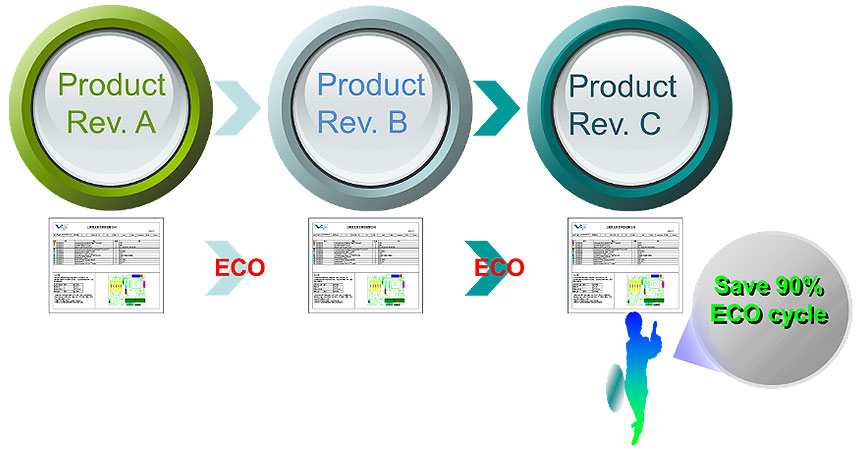

Fast ECO/ ECN Change
With VayoPro-Document Expert, you could react to ECN/ECO change quickly. Whatever the change is layout design, BOM, station, process or line operators, VayoPro-Document Expert could comply with these changes and generate updated documents, which reduce >90% of ECN/ECO cycle time.

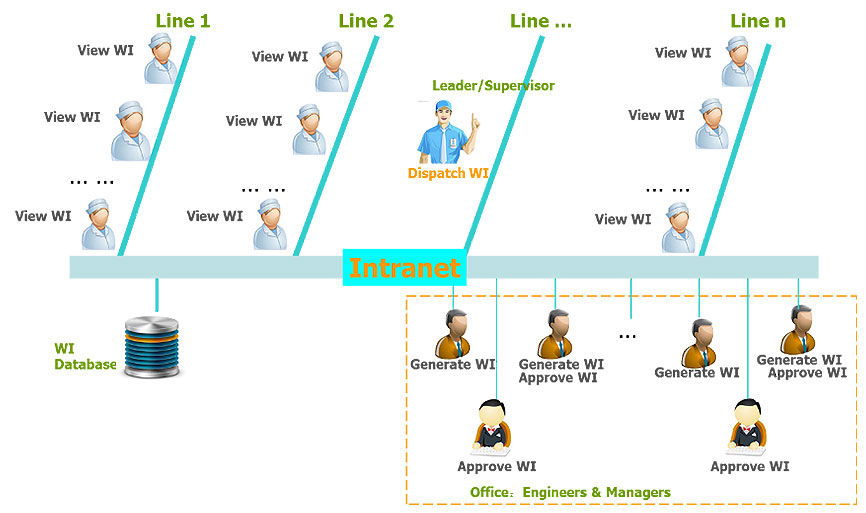

Expand To Paperless Work Instruction(WI) System
VayoPro-Document Expert enable user to expand the software to paperless work instruction document management system which covers document approval, dispatch & display. This will enhance a higher effectiveness in operation system & also promote environmental friendly culture.
